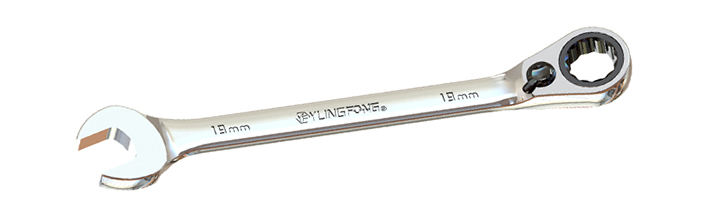

雙向棘輪扳手 (RGEW)

Gear ratcheting reversible combination wrench:
15° ring end offset.
Reverse switching lever benefits wrench to work easily on changing direction.
Chrome Vanadium Steel.
72 teeth gear mechanism design, just needs 5° swing for each movement.
Small head design enables wrench working in narrow and confined area.
Meets or exceeds ANSI and DIN standard.
RGEW 扳手長度 扳手重量
鍛品尺寸 共用規格 共用規格
MM INCH mm g
6M 6M     7M 1/4 124 36
8M 8M 5/16 136 42
9M 9M 11/32 142 48
10M 10M 3/8 160 58
11M 11M 7/16 168 72
12M 12M   174 84
13M 13M 1/2 180 102
14M 14M 9/16 190 122
15M 15M   200 140
16M 16M 5/8 215 168
17M 17M 11/16 230 198
18M 18M   240 210
19M 19M 3/4 248 240
20M 20   21   22   23   13/16     7/8  285 370
24M 24   25    26    15/16      1  325 520
